CT Compost Turners

$0.00

Our CT Series Compost Turner/Windrow Turner has a unique “semi circle” double skinned, tunnel design, offering maximum strength and our patented drum and paddle design that efficiently breaks up and mixes your compost ingredients while providing maximum aeration and product blending.

Description

CT Series compost turners windrow turners

Our CT Series Windrow Turner is unique with its “semi circle” tunnel design, offering maximum strength with the double skinned and our unique patented drum and paddle design that efficiently breaks up and mixes your compost ingredients while providing maximum aeration and product blending.  The patented drum lifts the windrow to a greater height, allowing more composting material to be added thus improving productivity.

CT Series Windrow Turner are designed to operate at speeds from 200meters/hour and up all pending the material ,there for the tractor has to have creep gear or hydrostatic transmission and 540 PTO speed for maximum effect with the drum. All the turners are fitted with safety clutch on the PTO to protect your tractor.

JPH CT Series Compost Turners are currently available in 4 sizes, with the drum diameter varying proportionally in size with the machine, to maximize the performance capability and to get the best aeration and blending performance.  CT Range of compost/windrow turners are without a doubt the best value compost turners available, and is the machine you need to turn waste materials in to high quality compost

Why buy a CT series Turner?

  • The latest patented ultra-efficient drum and paddle design offers Lower fuel costs
  • Galvanized tunnel sheeting and hot dipped galvanized side assembles, edge primed and 2 pack paint for real world protection
  • Smooth design inside and out for easy cleaning and reduced dirt build up, No bolted or protruding parts = Less corrosion
  • Better frame design for reduced torsion (twist) and shear stress
  • Cutting-edge centre focused water delivery
  • Industry standard tractor hook up
  • Australian designed and made for tough conditions
  • Hydraulic Steering and height control
  • A range of sizes and capability to suit your needs
  • Independently risk assessment preformed
  • Soil Foodweb International (SFI) tick of approval
  • Builds perfectly shaped windrows

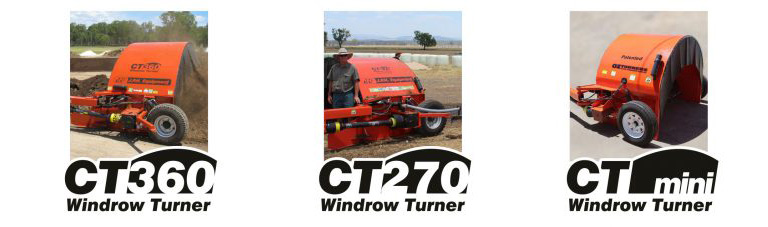

Models

CT_Series_Models

  • CT mini – 1.8 metre (6ft) wide drum, perfect for the budget conscious or smaller facility.
  • CT 270 – 7 metre (9ft) wide drum, capable of turning an average of 600 m3/ hour.
  • CT 360 – 3.6 meter (12ft) wide drum, capable of turning an average of 1000 m3/ hour.
  • CT 420 – 4.2 metre (16ft) wide drum, capable of turning an average of 1600 m3/ hour.
    Individual Model Specifications size, weight, Tractor HP requirement & throughput below.

Features

Patented drum and paddle design

The heart and major feature of our CT Series Windrow Compost Turner is the patented drum and paddle design, that changes the way the windrows are turned, aerated and lifted. It lifts higher and more efficiently breaks up, mixes and air-rates your compost. Importantly our unique design, uses up to 25% less power compared to conventional turners on the market saving you fuel every day.

Galvanized steel tunnel

An important major feature is the “semi~circle” tunnel, designed for maximum strength.  The entire galvanized steel tunnel is curved and smooth with no protruding nuts, bolts, folds or welds eliminating places for compost to pool or build-up causing corrosion.   This curve is vital working together with the water system in the process of turning organic waste; into compost involves moisture, oxygen and heat which are all highly corrosive.

Focused watering system

Another key benefit is the built-in focused watering system consisting of a multiple sprays nozzle’s covering the full arc of the tunnel, and width of the windrow.  This focuses an even spray from all sides into the windrow on every pass, this is ideal for applying compost inoculants and starters.  To make this a simple operation all CT Series Windrow Compost Turner feature a side mounted trailing arm that makes it simple to attach an optional WT5000 Water Wagon for continuous water supply.

One-piece hot dip galvanised side panels

First we hot dip galvanising both side panels gives you the best corrosion protection available, then we each prime and apply 2 pack paint to ensures maximum life and protection from corrosion

Hydraulic Steering and height control

The CT Series Compost Turner hydraulic system is easily operated from the comfort of the tractor cabin which allows the unit to centre behind the tractor and lift the Windrow Turner for higher ground clearance and easier height control while turning. All our turners are fitted with sheer pins in the steering arm, to protect the turner in case you should get it bogged

Amazingly fuel efficient

In real world testing a JPH Equipment CT270 compost turner proved to be so well balanced and power efficient that it only used 15 hp to go through a standard size 2.7×1.5m windrow at 400mt/ph.  The test rig was a John Deere 110hp tractor pulling a CT270 through a two week old 2.7×1.5m windrow that had not been turned that day. Using the CAN bus port we were able to monitor the tractors data as we turned through a standard size 2.7×1.5m windrow at speeds from 200mt to 400mt/ph recording data like throttle position, speed, rpm.

Just Tractor Alone ~ 30%, +CT270 @ 200mt/ph ~ 38%, @ 240mt/ph ~  42%, @ 330mt/ph ~ 45%, @ 400mt/ph ~ 47%.  It not just the amazingly fuel efficienty of the  CT series compost turner, it’s the reduced load on the tractor  engine wear,

Rubber safety curtains

CT Series Windrow Turners are also fitted with sturdy rubber curtains front and back to deflect flying stones and debris protecting staff and equipment, the front curtains are overlapped for additional tractor protection, but will not affect the windrow height itself.

Soil Foodweb International (SFI) tick of approval

We are delighted to have been granted the Soil Foodweb Tick of Approval, this approval means that our CT series of windrow turners meets the exacting standards established by SFI.You can be assured that companies holding the SFI TOA provide products in accordance with the latest in soil science, and at levels superior to standard regulations relating to agricultural inputs and their management.

Compost Turner Training and Induction  we can offer training  for a fee or something like that need to sort something with ged

To help you get the best possible result out of your CT Series Compost / Windrow Turner, JPH equipment can also offer a machinery induction and composting course.  From experience we know that correct training will enormously help you achieve a faster more reliable composting result and ensure that you get return on your investment as fast as possible.  Our composting induction course is half day on site training with a dairy farmer that has many years of composting experience using our CT series Turner’s.  His years of practical experience can also be available to you after the sale to answer any queries or questions you may have on your journey to improving your soil.

Our half day field training covers: Pre use machinery checks, Safe operation of your compost turner, Connecting the windrow turner to your tractor, Composting tricks and techniques, Cleaning and Compost Turner maintenance.   We also offer an Introduction to compost blending, introducing you to the amazing benefits of blending minerals into your compost, that offers a significant opportunity to re-mineralise in your soils

Independently done risk assessment

The turner design has been true an independently risk assessment, and making it perfect for use in workplaces with staff or contractors

Adding water wagon

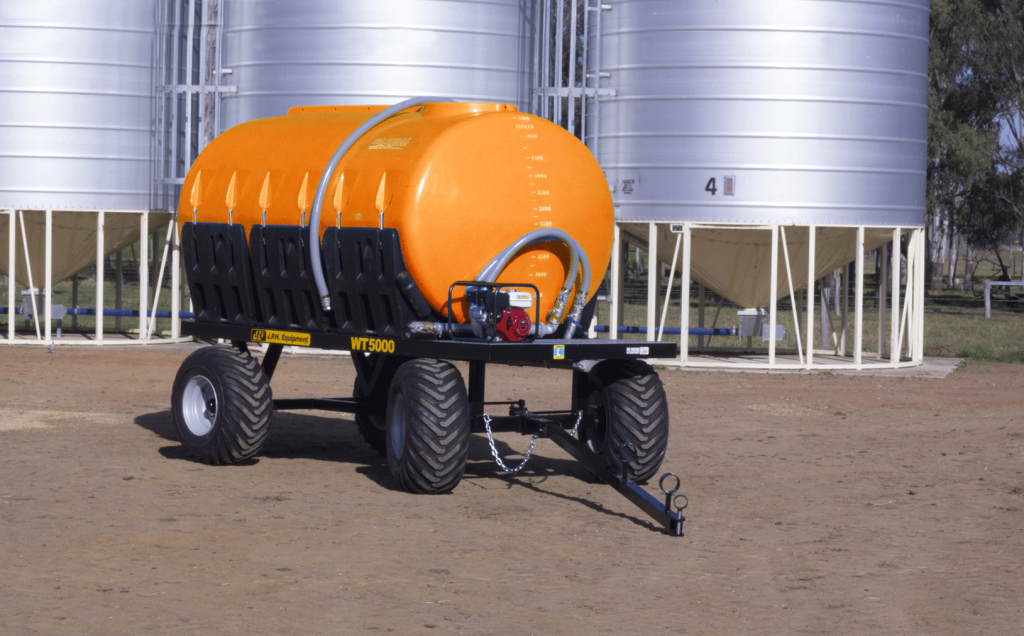

The CT Range has side mounted trailing arm makes it simple to attach a WT5000 Water Wagon which is as an integral part of the composting process. Water can be easily added to the windrow using the CT Series Compost Turner built-in watering system. The special nature of the unique watering system is to save water and the design ensures an even spray of water in the windrows. Therefore, better composting, less water usage and limited water runoff.



Optional Features

  • Road Trailer to transport your Compost Turner
  • Additional lighting

Specifications

CT420 Compost Turner /Windrow Turner Specs:

  • Drum Width: Uses a 4.2m wide drum. And 2.3 meter tunnel Clarence
  • Windrow Size: Makes windrows 4.2m wide and 2m < high.
  • Weight: 3000kg
  • Output: 1600 < cubic meters per hour
  • Tractor Required: Suggested requirement of a minimum of 150hp tractor.
  • Tow Speed: 200 < meters/hour. Requires creeper gear or hydrostatic gearing

CT360 Compost Turner /Windrow Turner Specs:

  • Drum Width: Uses a 3.6m wide drum. And 2 meter tunnel Clarence
  • Windrow Size: Makes windrows 3.6m wide and 1.8m
  • Weight: 2400kg
  • Output: 1300 cubic meters per hour.
  • Tractor Required: Suggested requirement of a minimum of 100hp tractor.
  • Tow Speed: 200 < meters/hour. Requires creeper gear or hydrostatic gearing

CT270 Compost Turner /Windrow Turner Specs:

  • Manufactured: Australian Manufactured for Australian Conditions
  • Drum Width: Uses a 2.7m wide drum. And 1.8 meter tunnel Clarence
  • Windrow Size: Makes windrows 2.7m wide and 1.4m high..
  • Weight: 2000kg
  • Output: 900 cubic meters per hour.
  • Tractor Required: Suggested requirement of a minimum of 70hp tractor.
  • Tow Speed: 200 < meters/hour. Requires creeper gear or hydrostatic gearing

CTmini Compost Turner /Windrow Turner Specs:

  • Manufactured: Australian Manufactured for Australian Conditions
  • Drum Width: Uses a 1.8m wide drum. And 1.4 meter tunnel Clarence
  • Windrow Size: Makes windrows 1.8m wide and 1.2m high..
  • Weight: 1200kg
  • Output: 400 cubic meters per hour.
  • Tractor Required: Suggested requirement of a minimum of 60hp tractor.
  • Tow Speed: 200 < meters/hour. Requires creeper gear or hydrostatic gearing

Product guarantee

Every CT Series Compost/Windrow Turner is designed and manufactured by JPH Equipment in Brisbane Australia.  JPH Equipment have been designing and manufacturing quality equipment for over 25 years, with every.
