Bagger2 (2m mobile)

Description

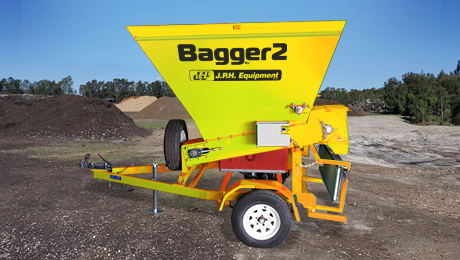

The Bagger2 is an transportable, road registerable, bagging solution that weighs around 850 Kg dry, and can easily be towed by any ute or 4X4.

The Bagger2 is supplied standard with bag holder, galvanised roller table, on-board generator (with electric start), and a viewing mirror for tank level. The fold down bagging table is easily adjustable with built-in supporting legs for the table and trailer Able to handle a wide range of materials, compost, mulch, soil, bark chips, gravel, pebbles and sand etc. The unit’s unique stirring/breaker in the bulkhead, features a rotating slick finger to break up lumps for a more even feed and finished bag weight and keeps the bulkhead clear for easy flow to the chute. A wide range of custom options are available these include stitched or heat sealed bag sealer, conveyor product table, pneumatic product clump breakers and more.



Standard Unit Features		Optional extras
Bag conveyor with optional extensions Electronic fill timing control, which allows timing to 1/100 seconds for consistent bagging 600mm wide heat-sealing unit A large 2 cubic meter hopper Silent 6.5kw key start Diesel generator Dust proof sealed bearings		Hopper level sight mirror Detachable leveling feet Stitching sealing unit Fire extinguisher Work lights.

The hopper is designed to cater for a variety of materials, however the density
and moisture content can affect the hopper fill height and material bridging



---

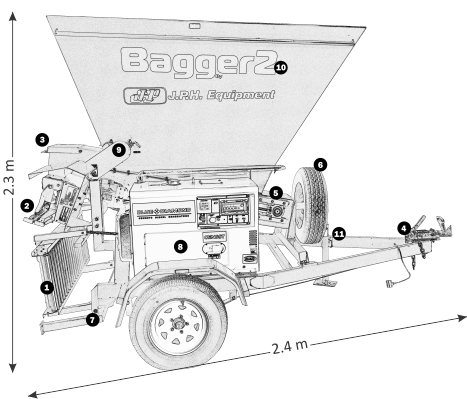

Major Features

1. Conveyor
2. Bag Sealer
3. Filling Chute
4. Trailer Hitch & Hand Brake
5. Feed Conveyor Tensioner
6. Spare Wheel
7. Conveyor Support Leg
8. Diesel Generator
9. Chain Guards
10. Main Hopper Bin
11. Support Leg

---
